Applications

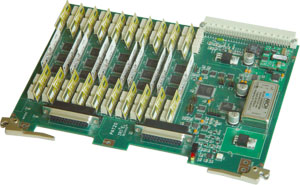

Provides connection to Exchange for 20 remote subscribers (phones), via access multiplexers (subscriber side)
Technical data
- Impedance ETSI/600 Ω
- Relative levels
- Output –7 dBr± 3dB (in 0.1 dB steps)
- Input 0 dBr± 3dB (in 0.1 dB steps)
- Loop feeding 48 V/2x400 Ω, loop resistance up to 1200 Ω
- Ringing signal from ring generator (GZV15) 50 do 75 Veff/25 Hz
- Metering frequency (standard/option) 16/12 kHz ± 1%
